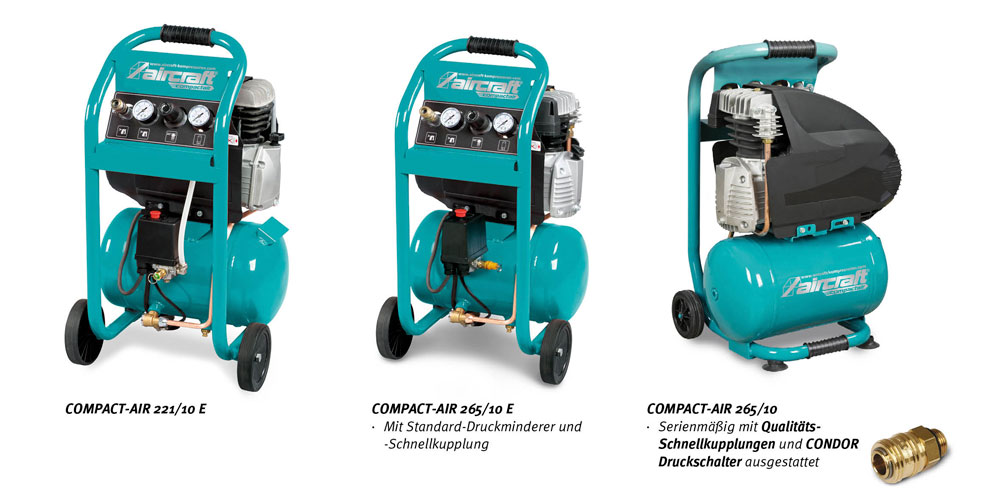

Ausstattung Compact-Air E:
Ausstattung Compact-Air:
Technische Daten | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Verdichtersystem * | HOS | HOS | HOS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Höchstvolumen Strom | 185 l/min | 250 l/min | 250 l/min | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Füllleistung ca. | 120 l/min | 155 l/min | 155 l/min | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Höchstdruck | 8 bar | 10 bar | 10 bar | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Behälterinhalt | 10 l | 10 l | 10 l | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Zylinder/Stufen | 1/1 | 1/1 | 1/1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Drehzahl | 2850 min-1 | 2850 min-1 | 2850 min-1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motorleistung | 1,5 kW | 1,5 kW | 1,5 kW | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Elektrischer Anschluss | 230 V / 1 Ph 50 Hz | 230 V / 1 Ph 50 Hz | 230 V / 1 Ph 50 Hz | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gewicht | 18 kg | 22 kg | 22 kg | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Maße (LxBxH) | 410 x 340 x 650 mm | 395 x 320 x 630 mm | 395 x 320 x 630 mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Schallleistungspegel LWA ** | 95 dB(A) | 96 dB(A) | 96 dB(A) |
